3345-29-7

  • Product Name:Parylene AF-4
  • Molecular Formula:C16H8F8
  • Molecular Weight:352.227
Inquiry

Product Details

pd_meltingpoint:240-250°C

Purity:99%

Chinese Manufacturer supply Parylene AF-4 3345-29-7 in stock with high standard

  • Molecular Formula:C16H8F8
  • Molecular Weight:352.227
  • Vapor Pressure:0.0211mmHg at 25°C
  • Melting Point:240-250°C
  • Refractive Index:1.489
  • Boiling Point:259.3 °C at 760 mmHg
  • Flash Point:96 °C
  • PSA:0.00000
  • Density:1.47 g/cm3
  • LogP:5.76760

2,2,3,3,8,8,9,9-Octafluorotricyclo[8.2.2.24,7]hexadeca-4,6,10,12,13,15-hexaene(Cas 3345-29-7) Usage

General Description

Characteristics of Parylen AF4 coating:Specialties:Unmatched UV stabilityExcellent thermal stability at high service temperature (350)Unmatched oxidation stabilityCompletely conformal coatingSuperior crevice penetration, pin hole freeAnti-saline damageAnti-stick ionBarrier properties:Chemical insolubility and solvent resistantLow water absorptionHydrophobic propertiesLow gas permeability , no out-gassingPhysical & mechanical properties:TransparentLight-weight and ultra-thinLow CTELow coefficient of frictionGood dry lubricityAbrasion resistanceStabilization of components and structuresParticulate immobilizationElectrical properties:Electrical insulationHigh dielectric strengthHigh volume resistivity ,ohm-cmLow dissipation factorLow dielectric constantMitigation of tin whisker growthBiocompatibility and bio-stabilityUSP class VIMicroorganism resistance

InChI:InChI=1/C16H8F8/c17-13(18)9-1-2-10(4-3-9)14(19,20)16(23,24)12-7-5-11(6-8-12)15(13,21)22/h1-8H

3345-29-7 Relevant articles

A novel, non-high-dilution method for preparation of 1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane

Dolbier Jr., William R.,Duan, Jian-Xin,Roche, Alex J.

, p. 1867 - 1869 (2000)

(Formula presented) A novel synthesis of...

Palladium catalyzed cross- and homo-coupling reactions of 4-Halo-1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophanes with various organometallic reagents

Roche, Alex J.

, p. 1 - 5 (2015)

An investigation of palladium catalyzed ...

A new ans Practical Synthesis of Octafluoroparacyclophane

Dolbier, William R.,Rong, Xiao X.,Xu, Yuelian,Beach, William F.

, p. 7500 - 7502 (1997)

-

The first synthesis and characterization of both diastereomers of a di[2.2]paracyclophane: 4,4′-Bis(1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane)

Roche,Duan,Dolbier Jr.,Abboud

, p. 7055 - 7058 (2001)

The synthesis and characterization of bo...

A convenient preparation of octafluoro[2,2]paracyclophane and dodecafluoro[2,2]paracyclophane

Zhu, Shi-Zheng,Mao, Yun-Yu,Jin, Gui-Fang,Qin, Chao-Yue,Chu, Qian-Li,Hu, Chang-Ming

, p. 669 - 671 (2002)

A new and convenient synthesis of octafl...

Preparation method of parylene

-

, (2021/04/03)

The invention discloses a preparation me...

CATALYTIC OR PHOTOCATALYTIC PREPARATION METHOD OF PARYLENE AF4

-

Paragraph 0024, (2014/02/15)

The present invention disclosed a prepar...

Remarkable efficiency of the aryne chemistry of (dehydro)octafluoro[2.2] paracyclophane when using the cadogan method

Dolbier Jr., William R.,Zhai, Yi-An,Wheelus, Will,Battiste, Merle A.,Ghiviriga, Ion,Bartberger, Michael D.

, p. 550 - 558 (2008/02/01)

Generation of the aryne, (dehydro)octafl...

3345-29-7 Process route

4-iodo-1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane
257863-40-4

4-iodo-1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane

1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane
3345-29-7

1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane

4,4'-bis(1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane)

4,4'-bis(1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane)

Conditions
Conditions Yield
With (1,1'-bis(diphenylphosphino)ferrocene)palladium(II) dichloride; copper; In N,N-dimethyl-formamide; at 80 ℃; for 8h;
74%
11%
4-iodo-1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane; With palladium dichloride; In tetrahydrofuran; at 20 ℃; for 1h; Inert atmosphere;
With <2.2>paracyclophan-4-ylmagnesium bromide; In tetrahydrofuran; at 20 ℃; for 8h; Inert atmosphere;
60%
30%

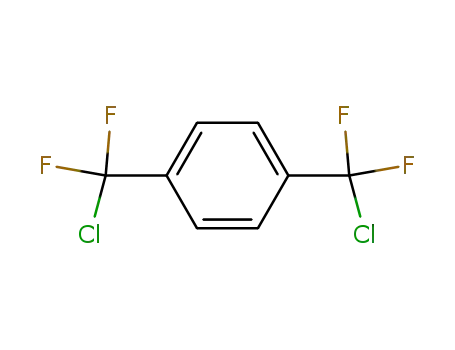

1,4-bis-(difluorochloromethyl)-benzene
2629-68-7

1,4-bis-(difluorochloromethyl)-benzene

1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane
3345-29-7

1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane

Conditions
Conditions Yield
With potassium iodide; zinc; In N,N-dimethyl acetamide; at 120 - 142 ℃; for 6h; Reagent/catalyst; Solvent; Temperature; Catalytic behavior;
45.7%
With lithium aluminium tetrahydride; titanium tetrachloride; In tetrahydrofuran; Heating;
22%

3345-29-7 Upstream products

  • 651-12-7
    651-12-7

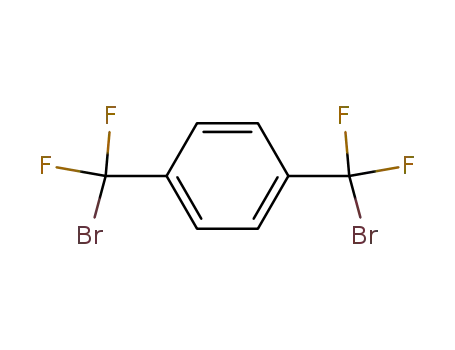

    α,α'-dibromo-α,α,α',α'-tetrafluoro-p-xylene

  • 2629-68-7
    2629-68-7

    1,4-bis-(difluorochloromethyl)-benzene

  • 2250-30-8
    2250-30-8

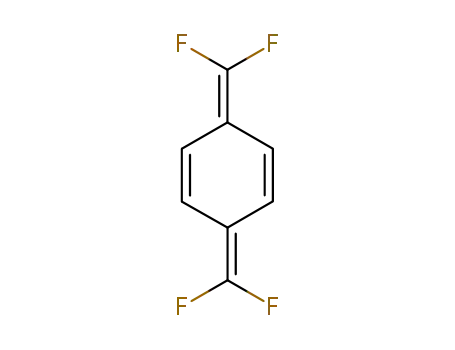

    α,α,α',α'-tetrafluoro-p-xylylene

  • 680-15-9
    680-15-9

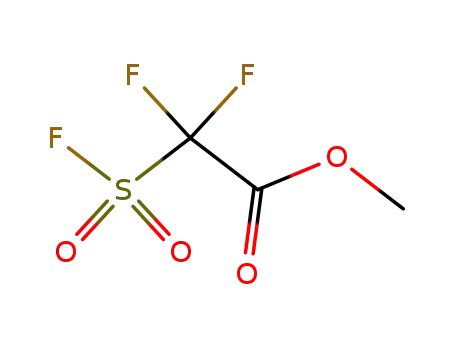

    2,2-difluoro-2-(fluorosulfonyl)acetate

3345-29-7 Downstream products

  • 2250-30-8
    2250-30-8

    α,α,α',α'-tetrafluoro-p-xylylene
